HTB-1B Bronze Self-lubricating Bearing
1/3
Material
- PTFE/Pb mixture 0.01~0.03mm
- Copper powder layer 0.2~0.35mm
- Copper substrate to improve bearing capacity
1/3

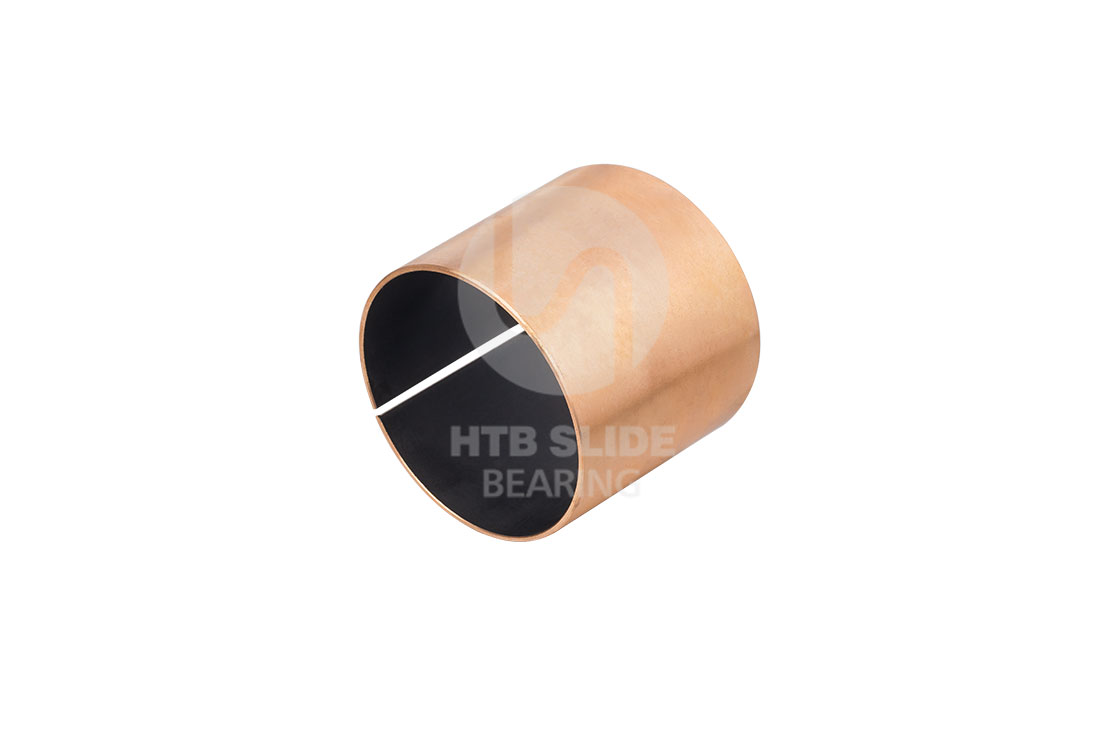

HTB-1B Bronze Self-lubricating Bearing
HTB-1B Bronze Self-lubricating Bearing
The product is based on a specially formulated high-density copper alloy with a porous bronze layer sintered in the middle and a mixture of polytetrafluoroethylene (PTFE) and lead (Pb) rolled on the surface. It can provide better self-lubrication, wear resistance, low friction and other properties, and fully utilizes the advantages of metals and multi-element polymers
PRODUCT DATA
| Performance | Related data | |
|---|---|---|
| Maximum load pressure | Dead load | 250N/mm2 |
| Dynamic load | 140N/mm2 | |
| Maximum PV value | Dry | 3.6N/mm2. m/s |
| Oil | 50N/mm2. m/s | |
| Maximum linear speed | Dry | 2m/s |
| Oil | 5m/s | |
| Coefficient of frictionµ | Dry | 0.08~0.20 |
| Oil | 0.02~0.07 | |
| Temperature | -200oC~+280oC | |
| Thermal Conductivity | 60W/m .k | |
| Linear expansion coefficient | 18×10-6/k |
